Redding - Die 223 Type S Neck set

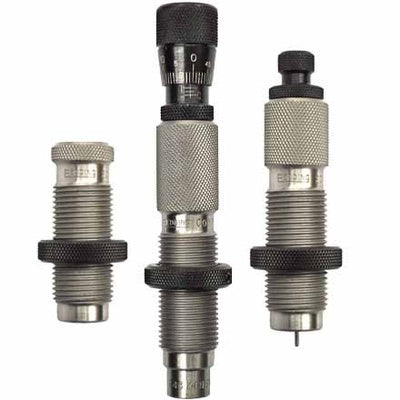

The Redding 3-Die Type-S Match Bushing Full Neck Sizer Die Set for .223 Rem includes a Type-S Match Bushing Neck Sizing Die, Body Die and Competition Seating Die. Bushings and Shellholder sold separately.

Type-S Match Bushing Neck Sizing Die

With the Type-S Bushing Neck Sizing Die, the cartridge case is completely supported and aligned with the sizing bushing before the sizing process begins. As the sizing process starts, the cartridge case remains supported in the tightly chambered sliding sleeve as it moves upward while the resizing bushing self centers on the case neck. The decapping rod is maintained in precise alignment by using the internal parts of the die as a linear support much like a firing pin. (Bushings are sold separately)

The Body Die

Is designed to full length resize the case body only and bump the shoulder position for proper chambering without disturbing the case neck. It is intended for use only to resize cases which have become increasingly difficult to chamber after repeated firing and neck sizing.

Competition Seating Die

The bullet guide to seating stem fit is so precise that the seating stem can actually be demonstrated to float on a column of air. The micrometer is calibrated in .001" increments. It also has a zero set feature that allows you to zero the micrometer to your rifle or favourite seating depth.
