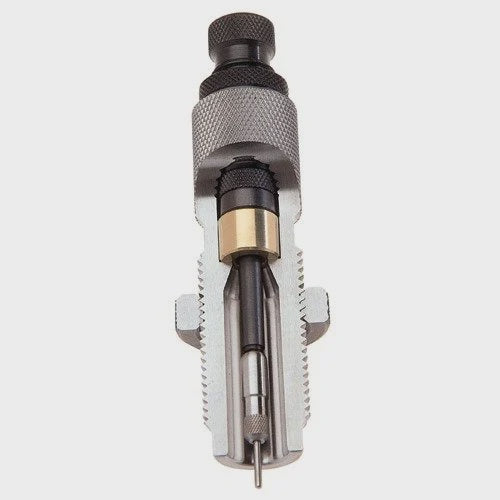

Redding Die 308win Type S Small Base FL Die

SMALL BASE Full Length Type-S Bushing Die

Now anyone with a standard reloading press can benefit from advanced benchrest techniques.

The amount of resizing provided by conventional reloading dies has  always been dictated by the manufacturing tolerances (SAAMI specifications) of the brass cartridge case itself. Reloading die  manufacturers have been forced to design the neck diameter of their dies small enough to accommodate the thinnest possible brass.

This may be as much as .008" - .010" smaller than the maximum cartridge dimensions typically shown in most reloading manuals.

Since the majority of cases that the reloader is likely to encounter in the field are thicker than the minimum specifications that the dies were designed for, case necks are often  resized excessively.

It can be easily demonstrated that excessive resizing of the cartridge case quickly leads to stress distortion and concentricity problems. The new Type S - Bushing Style Dies offer a simple solution to this age old problem.

Full length resizing while maintaining exact control of the case neck is often desirable in one operation. The new Type S - Full Length Resizing/Bushing Die accomplishes this task with the precision you would expect from Redding.

Uses the same interchangeable bushings (.001" increments) as those used in our bushing style neck sizing dies.
The adjustable decapping rod allows you to adjust the bushing position, sizing only part of the neck length when desired .
Concentricity is enhanced by the ability of the bushing to self-center on the neck of the cartridge case.
All Type S (except 17 and 20 Cal.) dies are supplied with both the standard size button and a decapping pin retainer for the advantages and versatility described under our Type S - Bushing  Style Neck Sizing Dies.
Note: By removing the bushing and all internal parts, the Type-S full bushing die may also be used as a body die.

All dies are supplied without bushings.
