21st Century - Gen X Expander Die Body with Window

Introducing the much anticipated Generation X Expander Die Body with viewing window!  Set up of an expander die has not been easier!  The viewing window allows the user to set the die to allow for optimal mandrel use without “bottoming out”.  Machined out of 7075 Aluminum and then hard coated for durability this die body will last forever under heavy use. 7/8”-14 threaded O.D. for standard press. Die body is machined internally to accept 3/8" dia. shank expanders. This tool helps to keep your cases concentric during the expanding operation. The mandrel is then allowed to free float inside the case to compensate for press ram and shell holder misalignment. Aluminum cap retains expanding mandrel and allows for floating function. Aluminum Loading Die Locking Ring has a nylon ball and set screw to hold in place which only takes a pinch with an Allen Wrench to secure.

Machined out of 7075 Aluminum and then hard coated for durability the Gen-X (GX) die body will last forever under heavy use.

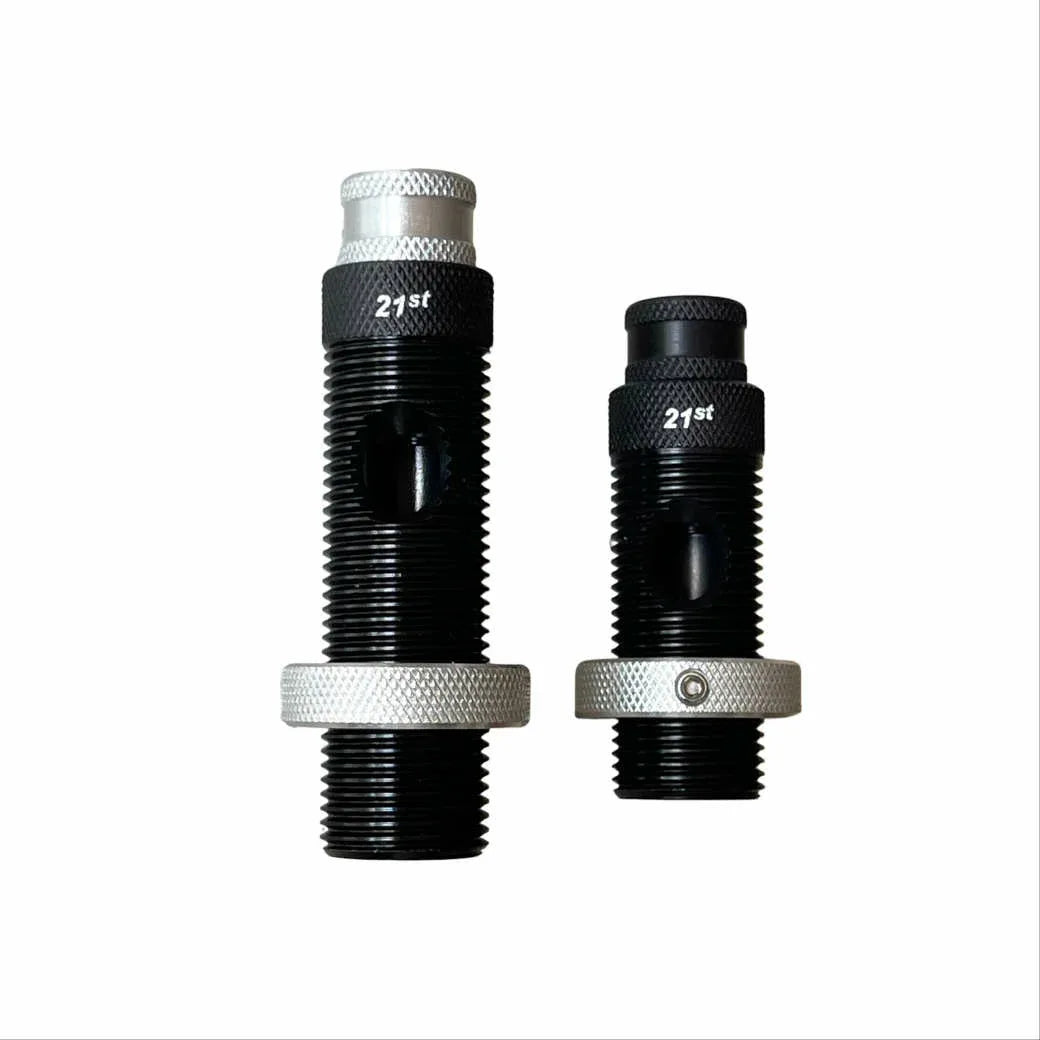

Standard-length expander die body is used for 223 Remington (1.760") up to 30-06 (2.494") Length Cases,

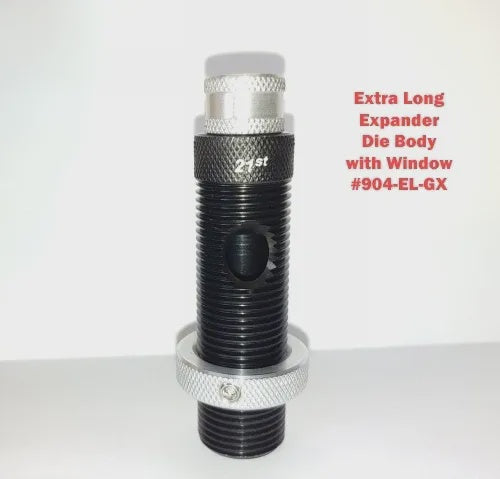

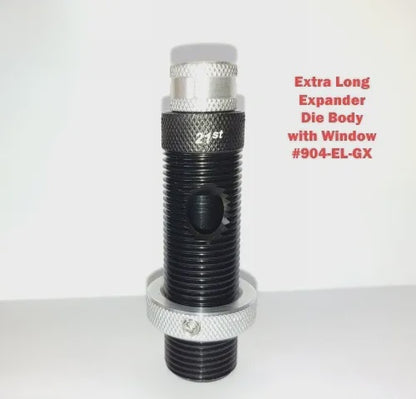

Extra-long model is for 30-06 length cases and longer.

Short die body is needed for cases shorter than a .223 Remington (1.760"). (the 904-S Short Die Body is stainless and does not have a window).

Large Caliber (.35 caliber and up) Require our large caliber die bodies.  These are designed the same as our regular-bodies, but use a 9/16" dia. shank.  These are made of stainless without a window.  Available in long and short models based upon case length. Our chart can help you determine what length die body is best for your application.
