Gehmann - Rear Iris

(#PH510) Gehmann Rear Iris - Adjustment range 0.5mm - 3.0mm. Thread size suits Parker-Hale or Redfield.

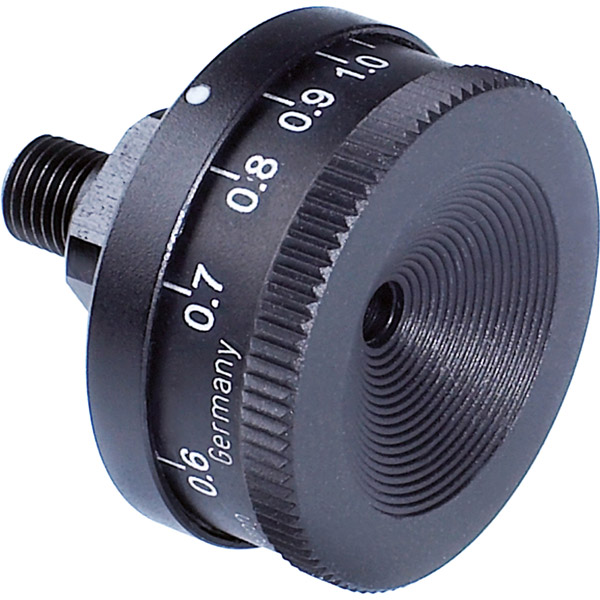

(#510) - Gehmann Rear Iris - Extremely short design and adjustable over a wide range of 0.5 - 3.0mm. The aim-point is precisely maintained through a wider range of adjustment by the introduction of a new system of aperture control, which is operated by varying the pressure of a steel tube against the central aiming ring - this guarantees a perfect circle at any point within the scale. Iris made of hardened spring steel, not brass like other manufacturers, therefore extremely robust, making it also suitable for large calibres.  Thread M9.5x1 for all well-known target rifle brands.

(#550) Gehmann Rear Iris twin polariser, Adjustment range 0.5mm - 3.0mm. Thread size 9.5mm.

(#566) Incorporates the patented 510 iris, Adjustable over a wider range of 0.5 - 3.0mm. Filters are of the highest quality optically flat glass in colours: orange, light green, yellow, medium grey, dark grey and amethyst (purple). Can be used as iris only. Removable steel thread to add f.e. 0.0 diopter. Instruction manual included.

(#575) Gehmann Rear Iris - Black with Diopter and 6 x Coloured filters and 2 x Polarisation
Adjustment range 0.5mm - 3.0mm. Diopter range -4.5 to +4.5 Note that the new model no longer shows the graduations. Thread size 9.5mm.

(#577) Gehmann Rear Adaptor - Allows for the 1.5x irises to be used without the magnifyer

(#568)

• Iris 0.5 - 3.0mm
• Can be used as single or twin banks of six colours:
  • 1. bank: orange, light green, yellow, medium grey, dark grey and amethyst
  • 2. bank: Light blue, dark blue, lemon yellow, red, light green & lilac
• Colours from one ring can be mixed with the other to provide the remaining 36 colour options
• Twin polarisers
• Can be used as iris only
• Removable steel threaded connection
• Easy clean instructions included
