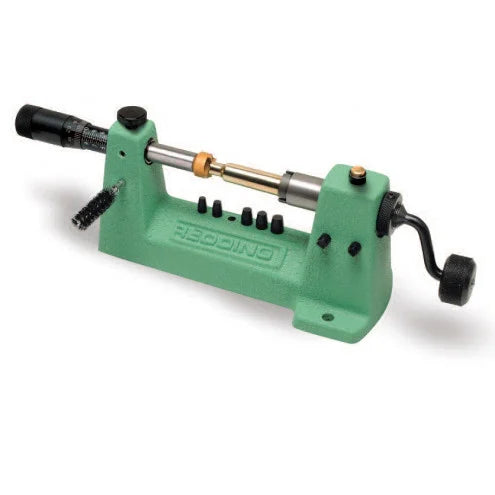

Redding - Case Trimming Lathe 2400

The innovative new push button chuck lock simplifies loading and unloading while facilitating perfect alignment of the case and pilot. The design of the new push button chuck lock, combined with the extended cast iron frame of the Model #1400-XT, increases case length capacity; accommodating not only the latest long action cartridges but old time classics as well.


Redding "case trimming lathes" are the only case trimmers on the market that turn the case and not the cutter. This feature guarantees a perfectly square case mouth with every cut.

Model 2400 features:

• New micrometer…easy adjustments of .001".
• Cast iron frame to maintain precision alignment.
• New push button collet chuck is ideally suited for use with optional power adapter.
• Handles 17 to 50 Cal, up to 3-1/4" case length.
• Universal collet fits all popular cases – no others to buy.
• TiN (Titanium Nitride) coated replaceable cutter.
• Storage holes for pilots.

Supplied with:

• Universal collet fits all popular cases.
• TiN (Titanium Nitride) coated replaceable cutter.
• Six pilots - .22 cal., 6mm, .25 cal., .270 cal., 7mm and .30 cal.
• Two neck cleaning brushes (.22 thru .30 cal.)
• Large and small primer pocket cleaners.

3/16” Shank Pilots may also be used on Hornady and Forster trimmers.	Universal Collet accepts all popular cases –  no others to buy!	New replaceable ( TiN)  Titanium Nitride coated high speed cutters.	Optional Power Adapter with 1/4” hex for use with cordless screwdrivers. Works with both trimmers. ITEM NO. #14025

Item No.14045 assembly fits only Model 14 & 1400 Trimmers. The Model 2400 micrometer will not fit any other Trimmer.
* Note: 17 and 20 caliber pilots have a 5/32” shank, therefore,  #14040 cutter will interchange with RCBS.
