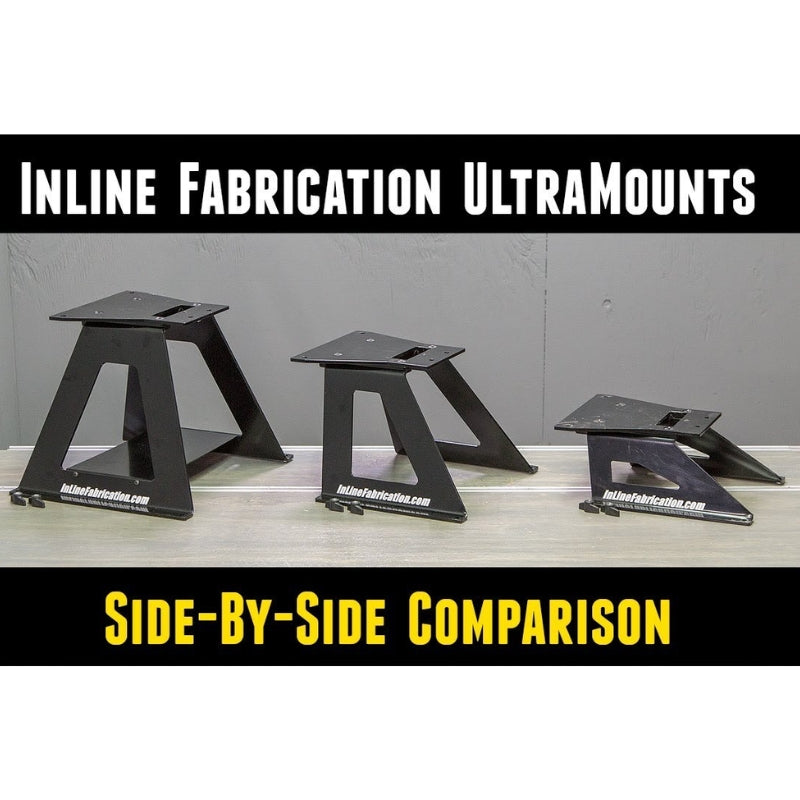

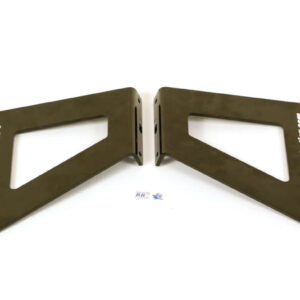

Ultramount Leg Set InLine Fabrication

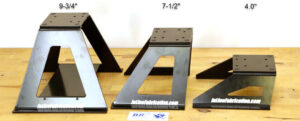

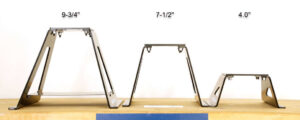

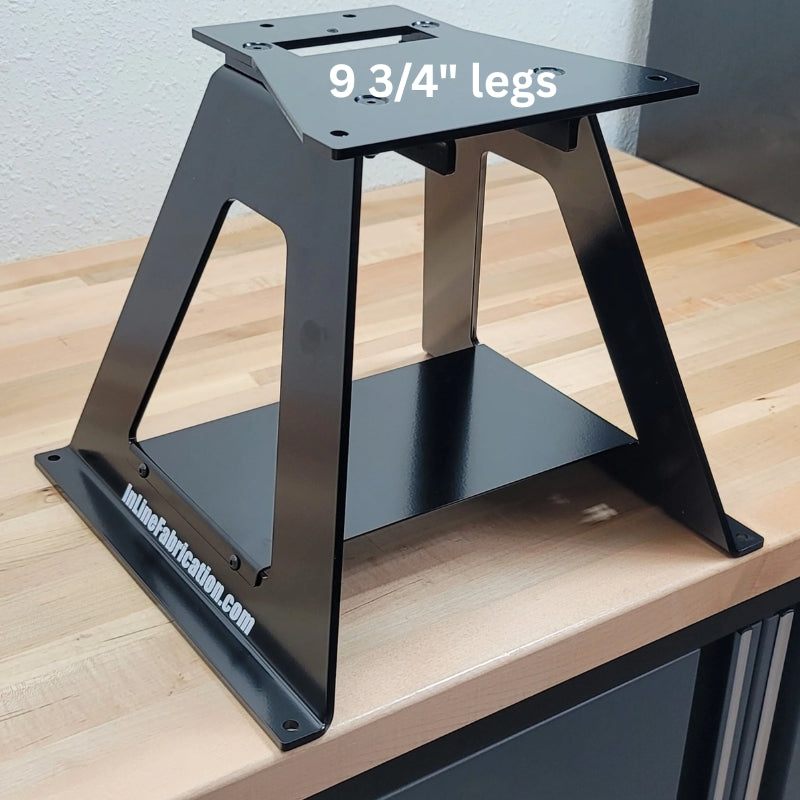

Ultramount Leg Set 9.75 inch InLine Fabrication

• This leg set is the Tallest size of the 3 types of InLine leg sets available. This set consists of 2 x legs (9-3/4″)
• Works with either the “Dedicated” system of press Top plates. A range of Dedicated Press Top plates are available to suit most presses and bolt directly on top of these legs.
• Or works with the “Quick Change” system.  For the Quick Change” system to work there will be two different tops needed.
• In that QC system the plate which bolts on top of these 9-3/4″″ legs is called a “Quick Change Base Plate”. Then a second plate, called QC Top plate will slot into the QC Base plate. QC Top Plates are made to suit a range of different types of presses and other accessories also.
• This 9-3/4″ leg height will allow you to mount with most presses in any location on your bench. Not necessarily on the edge of the bench. Which can be helpful.
• Depending on your press type and application, you would need to take into account your press handle and linkage system movement so it does not contact on the bench if setting back from the edge. So as always, please measure up.

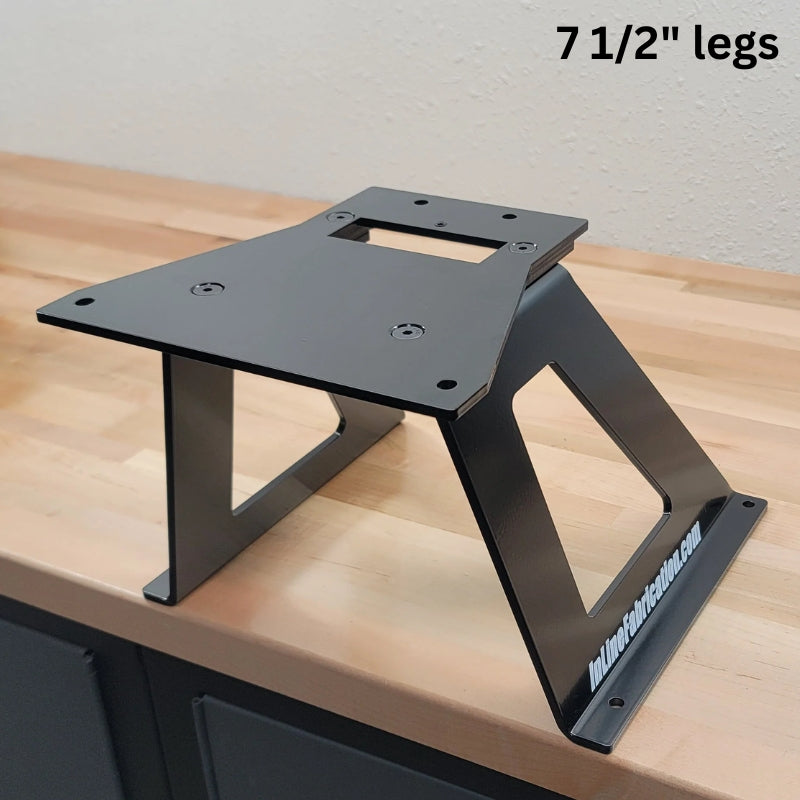

Ultramount Leg Set 7.5 inch InLine Fabrication

• This leg set is the mid size of the 3 types of InLine leg sets available and consists of 2 x legs (7-1/2″)
• Works with the range of Dedicated Press Top plates available to suit most presses and bolt directly on top of these legs.
• Or works with the “Quick Change” system (the Quick Change” system consists of two different tops).
• In the QC system the plate which bolts on top of these 7-1/2"″ legs is called a “Quick Change Base Plate”. Then a second plate, called QC Top plate will slot into the QC Base plate. QC Top Plates are available for all the  different types of presses and other accessories also.
• The 7-1/2″ leg height is ideal where there is less available height above the bench for your press to fit the tall 9-3/4" set.
• This 7-1/2″ high leg set may require fitting near the front edge of the bench.  You would need to take into account your press handle and linkage system movement so it does not contact on the bench if setting back from the edge..

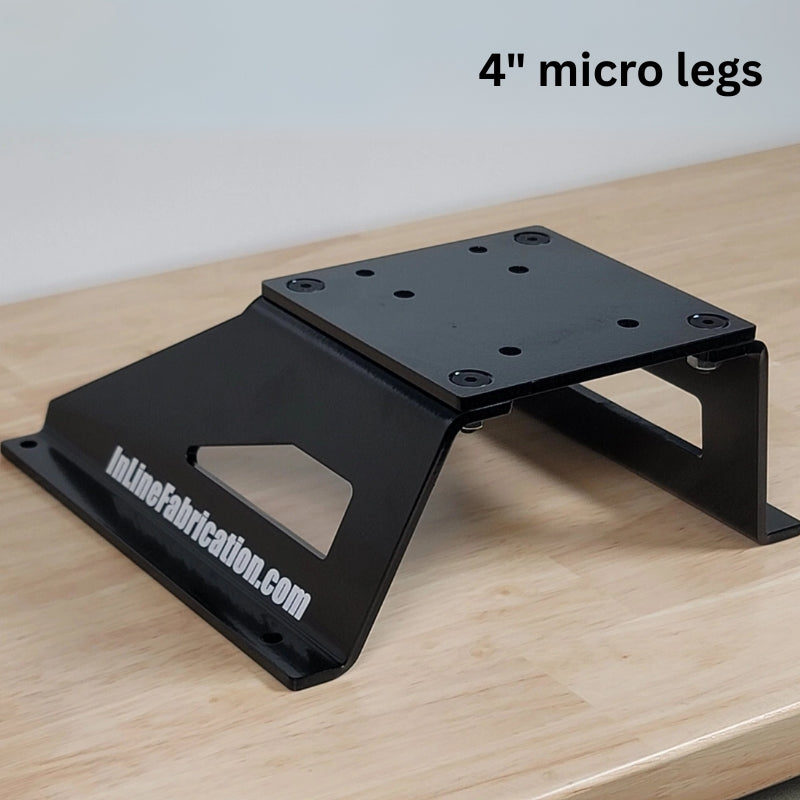

Ultramount Leg Set Micro 4 inch InLine Fabrication

• This leg set is the shortest or lowest of the 3 types of InLine leg sets available and consists of 2 legs (4.0")
• Works with  the range of Dedicated Press Top plates available to suit most presses and bolt directly on top of these legs.
• Or works with the "Quick Change" system (the Quick Change" system consists of two different tops).
• In the QC system the plate which bolts on top of these 4.0" legs is called a "Quick Change Base Plate". Then a second plate, called QC Top plate will slot into the QC Base plate. QC Top Plates come in the full range types of presses and other accessories also.
• The 4.0" leg height is ideal where there is not much available height above the bench for your press to fit and operate.
• This 4.0" high leg set will require fitting near the front edge of the bench for most applications. So the press handle and linkage system does not contact on the bench.

NB: There is a 4″ leg size available for lower mounting needs. There is also a mount system for fitting directly onto the bench top. But that system is only for the Quick Change plate arrangement system and it is called the “Flush Mount Quick Change system”.
