Atlas - Bipods

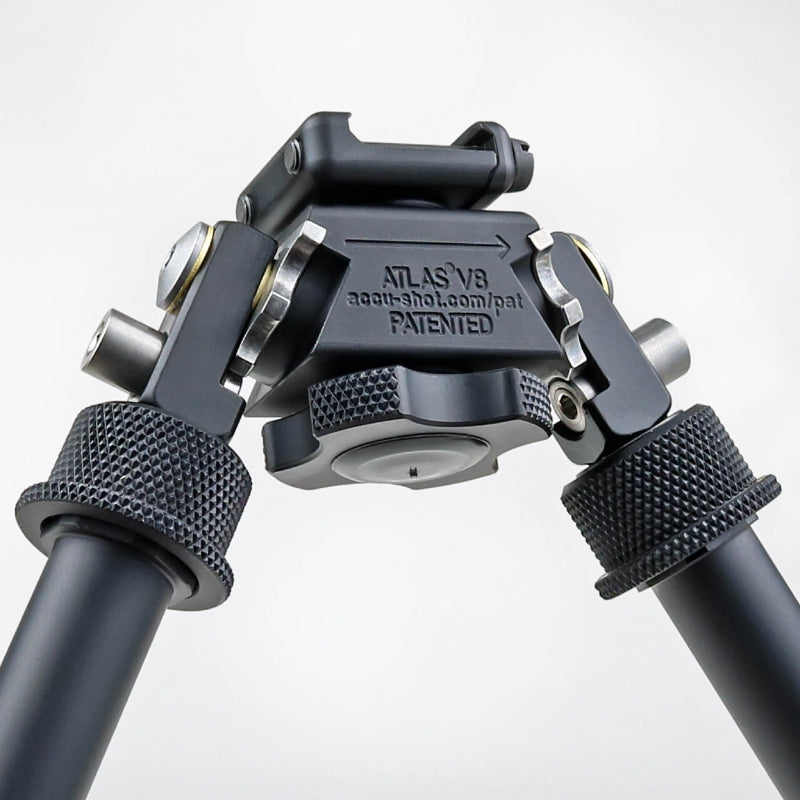

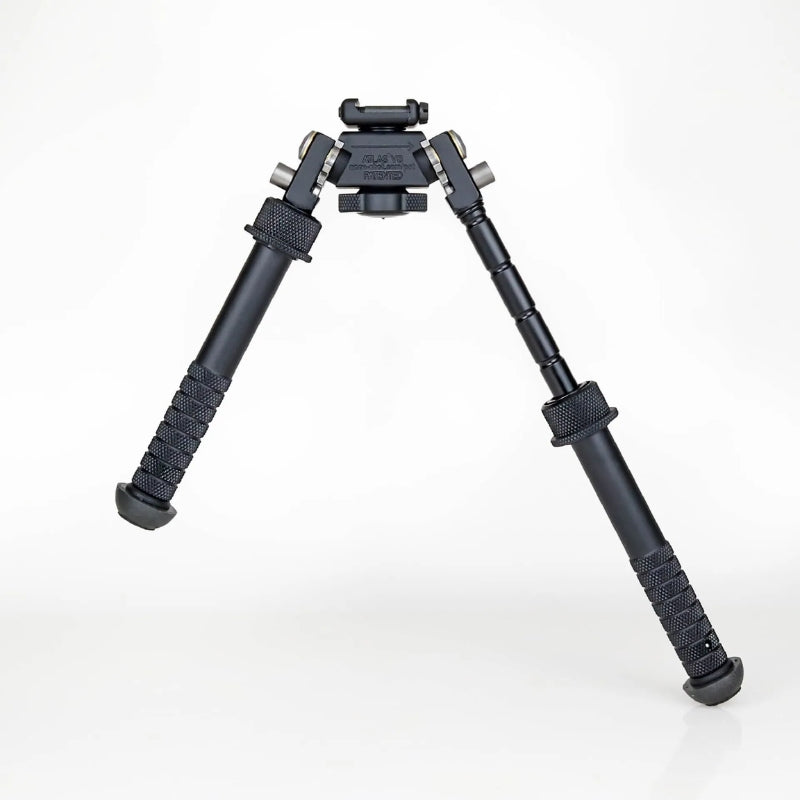

(BT10) The BT10 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only. Selected for SOCOM MK14 MOD 2. NSN 1005-01-601-0007 (for complete system) Height Range: 4.8 – 9.1″ (6.3” at 90°).

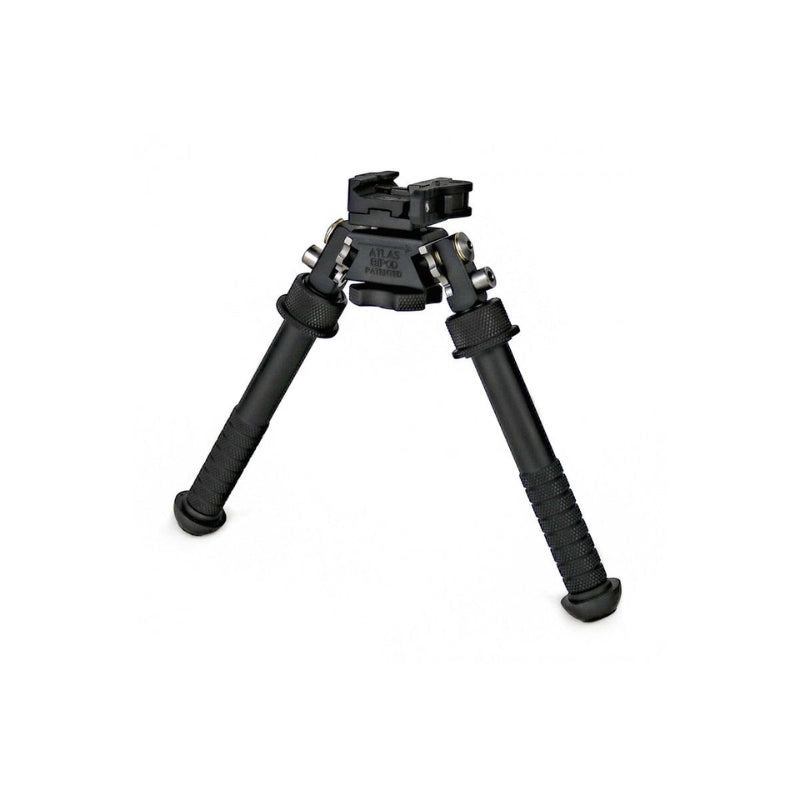

(BT10-LW17) The BT10-LW17 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only. Height Range: 5.2 – 9.6″ (6.8” at 90°).

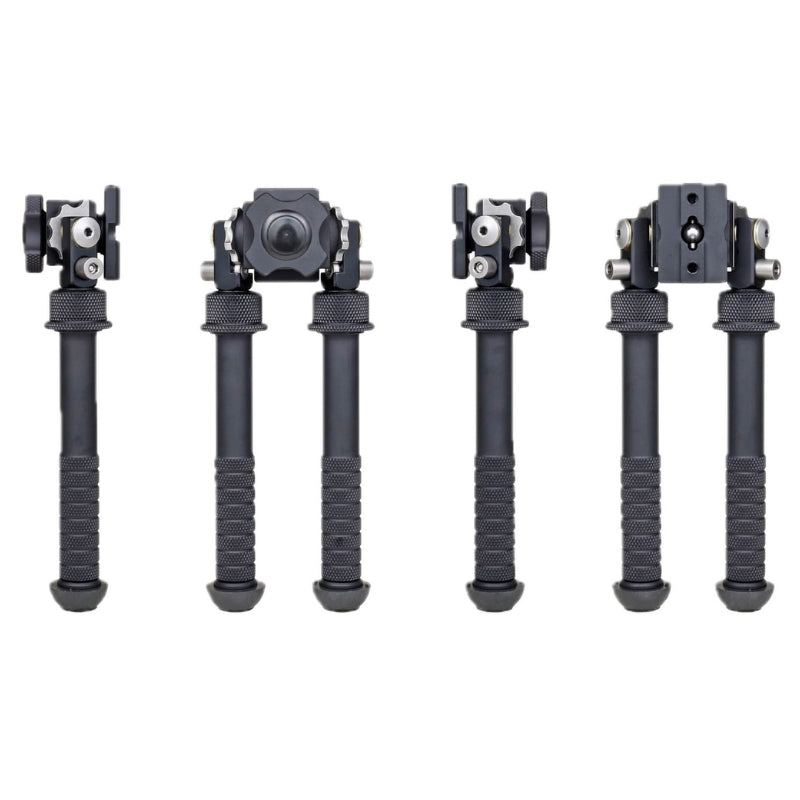

(BT10-NC) The BT10-NC V8 Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount such as the ADM-170-S, ARMS 17S, LT271 or any ARCA dovetail mount with the same hole pattern. The BT10-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK Adapter. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only. Height Range: 5 – 9.4″ (6.5” at 90°).

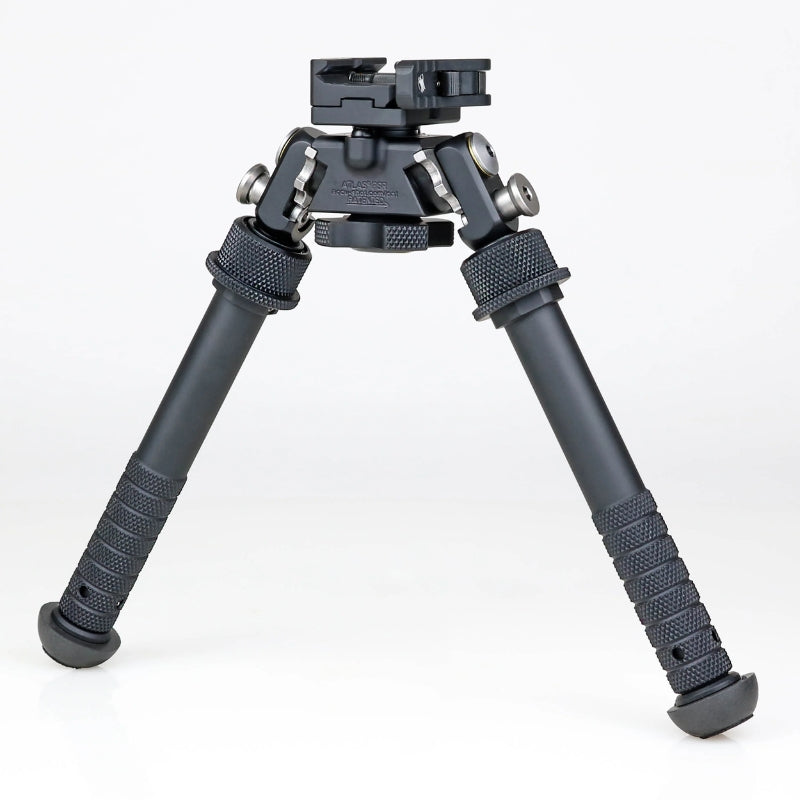

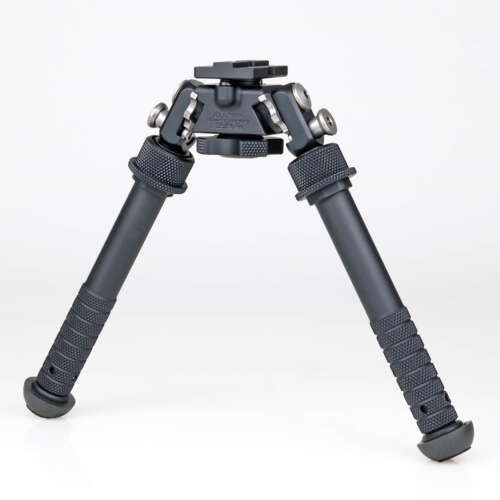

(BT46-LW17) The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only. Height Range: 5.2 – 9.6″ (6.8” at 90°).

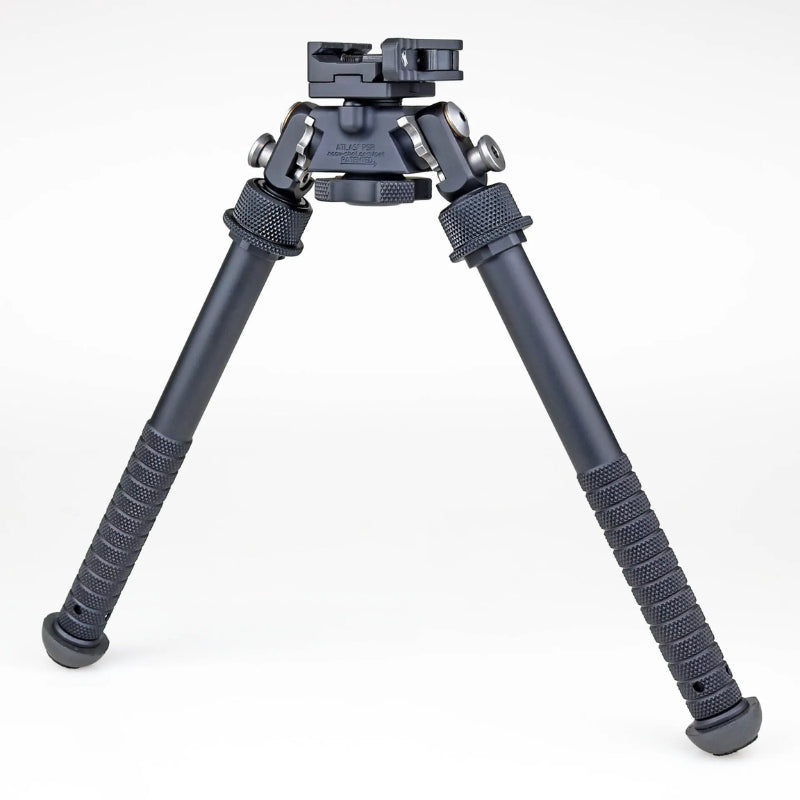

(BT47-LW17) The BT47-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only. Height Range: 6.4 – 12.8″ (8.5” at 90°).

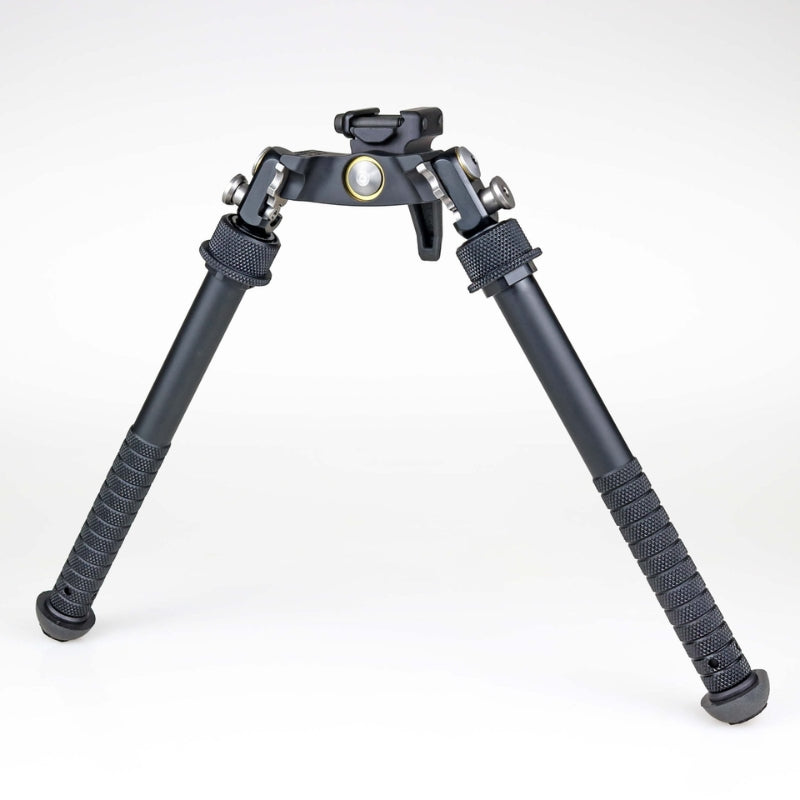

(BT47-NC) The BT47-NC PSR (Precision Sniper Rifle) Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount such as the ADM-170-S, ARMS 17S, LT271 or any ARCA dovetail mount with the same hole pattern. The BT47-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK Adapter. It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only. Height Range: 6.2 – 12.5″ (8.3” at 90°).

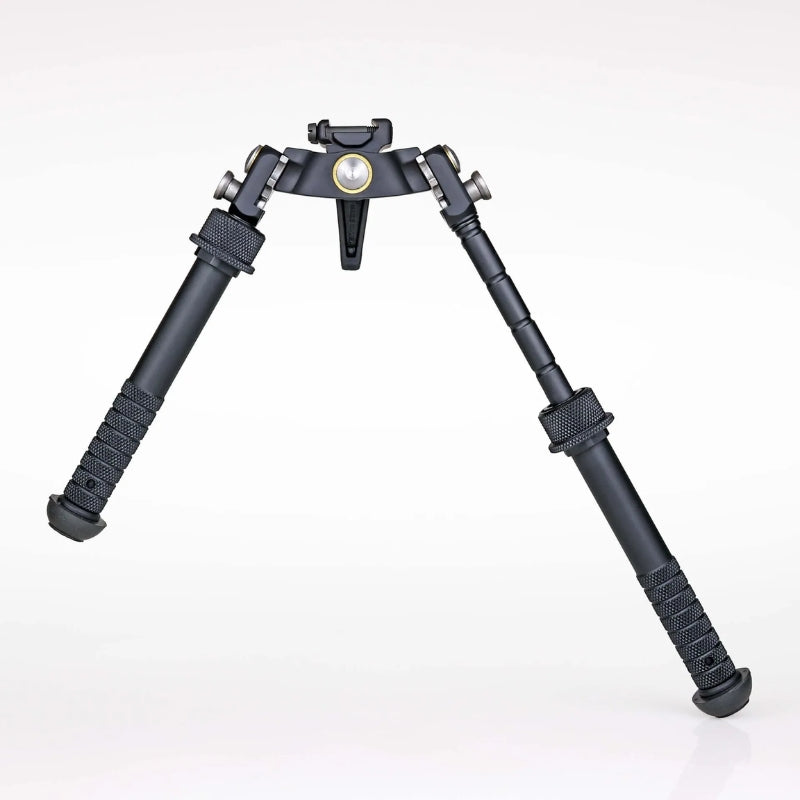

(BT65) The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature. The BT65 mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly. Adjustable, preloaded Cant with additional tension lever using original KMW “Pod-Loc. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only. Height Range: 4.9 – 9.2″ (6.4” at 90°).

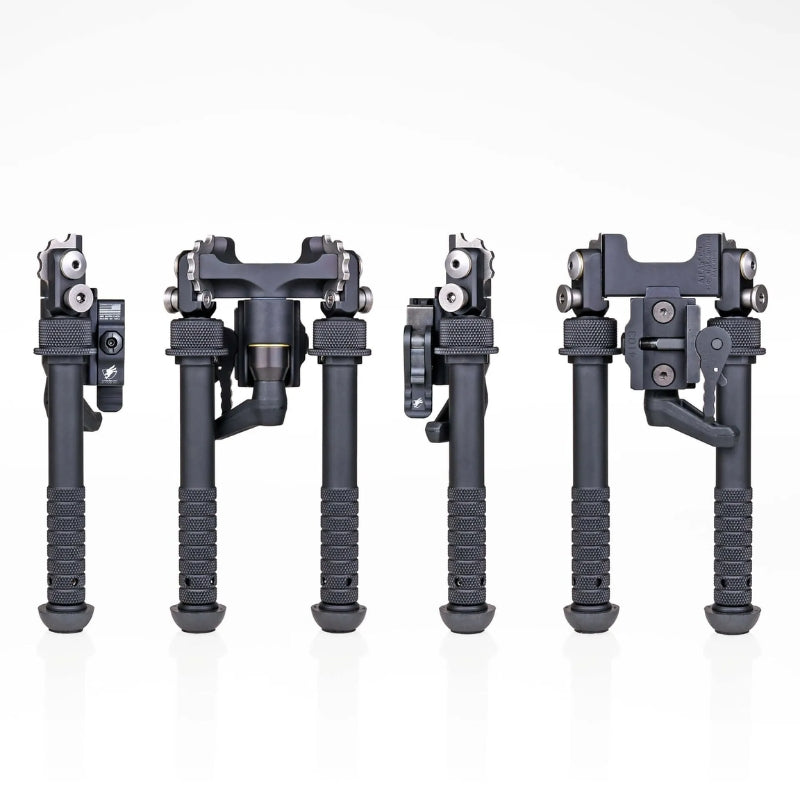

(BT65-LW17) The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature. The BT65-LW17 mounts directly to any 1913 style Picatinny rail via the included ADM-170-S Lever. Adjustable, preloaded Cant with additional tension lever using original KMW “Pod-Loc. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only. Height Range: 5.1 – 9.4″ (6.6” at 90°).

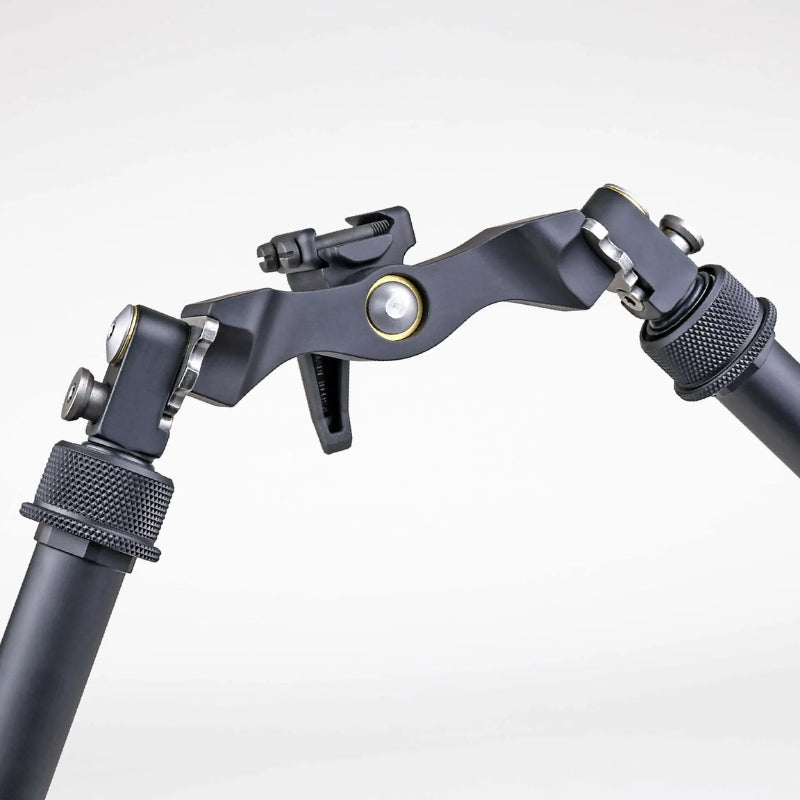

(BT72) The BT72 Super CAL (Cant And Loc) Atlas Bipod does not PAN. This model mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly. Includes patented 45° leg positions, non-rotating legs, optional quick change feet and “Hold What You Move Technology.” Adjustable, preloaded Cant with additional tension lever using original KMW “Pod-Loc". It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and has heat treated stainless steel components. Available in black only. Height Range: 5.6 – 10.8” (7.5” at 90°).

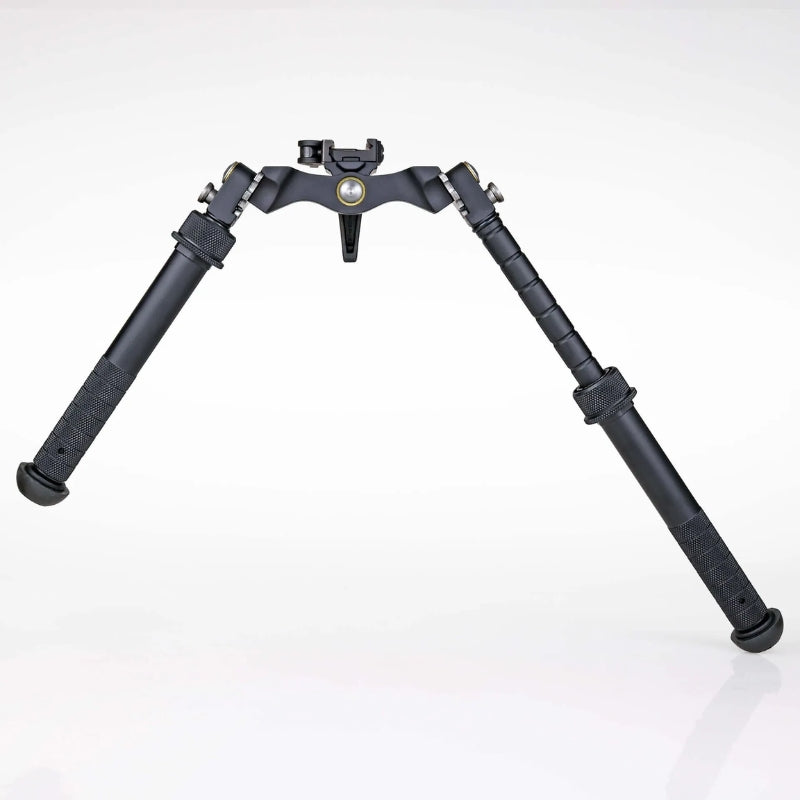

(BT72-LW17) The BT72-LW17 Super CAL (Cant And Loc) Atlas Bipod does not PAN. This model mounts directly to any 1913 style Picatinny rail via the included ADM-170-S Lever. Includes patented 45° leg positions, non-rotating legs, optional quick change feet and “Hold What You Move Technology” . Adjustable, preloaded Cant with additional tension lever using original KMW “Pod-Loc". It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and has heat treated stainless steel components. Available in black only. Height Range: 5.8 – 11” (7.7” at 90°) .
